How to use

1. Turn on

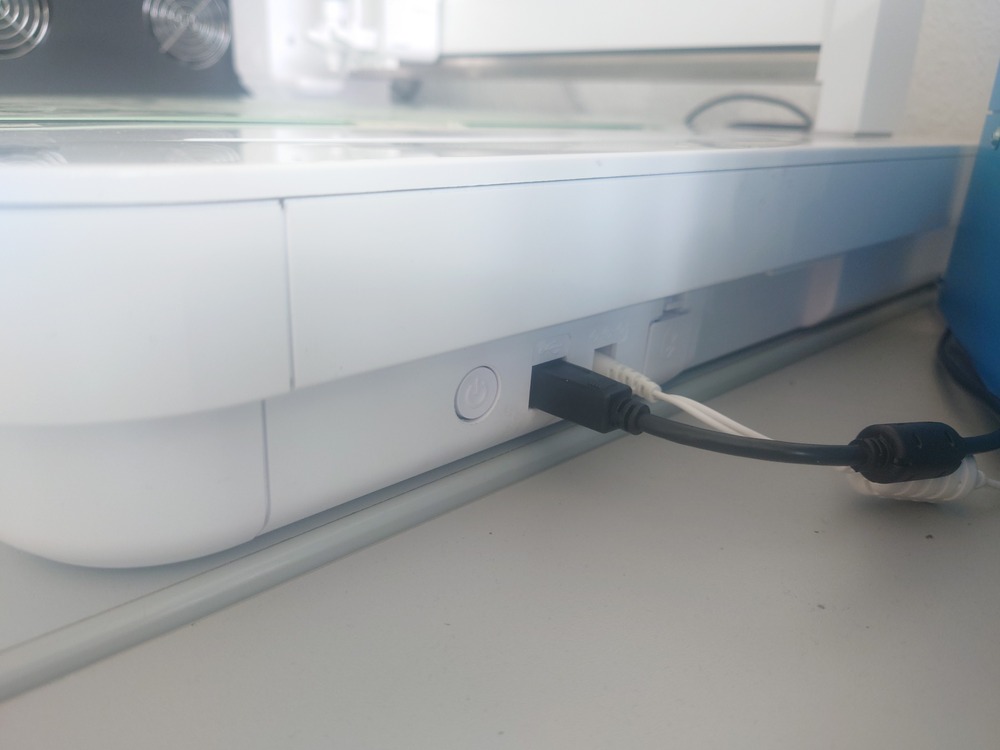

Press the power button on the right side for a few seconds:


2. [Optional] Insert tools

Next choose your tool you want to use, currently there are:

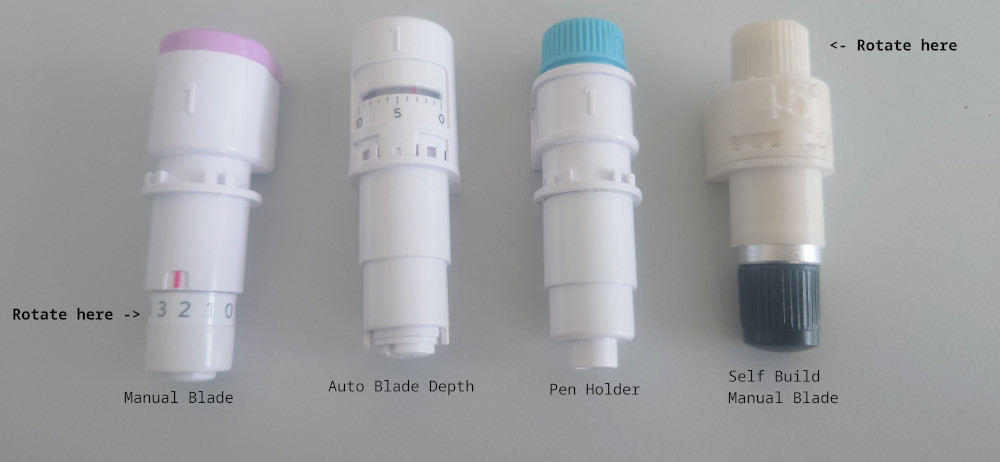

Tools


Tool Feature
Curio Manual Blade Tool with blade, where the tool-depth needs to be adjusted manually

- adjustment and disamble by rotating the bottom scale
Curio Auto Blade Tool with blade, where the tool-depth can be adjusted with the software, it then drives into the left side of the machine and presses mechanically the tool down

- press the bottom to manually set the tool-depth
Curio Pen Holder Tool for a penn, which can be tightend on the top, an the top part can be changed for different pens
Self Build manual tool Self printed manual tool, like the above, but to adjust it, rotate on the top

- rotate the bottom to change the blade

All tool belong into SLOT 1.

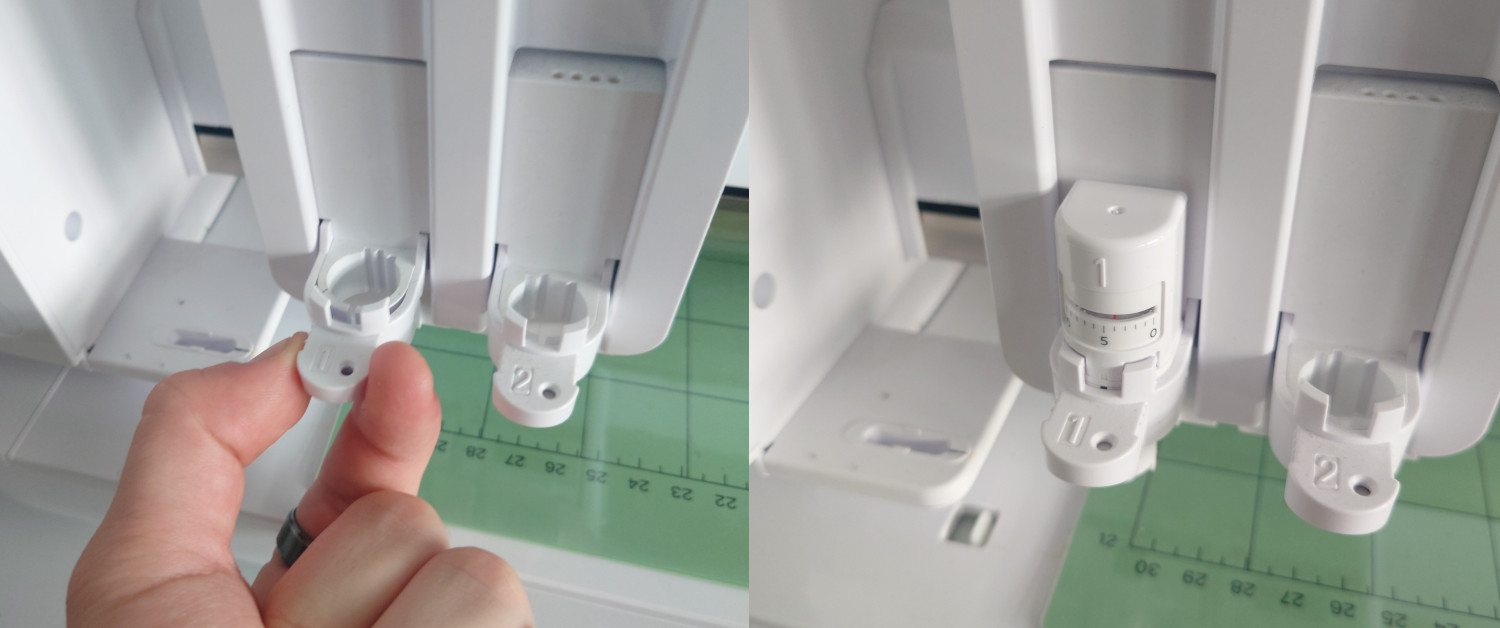

Load A Tool

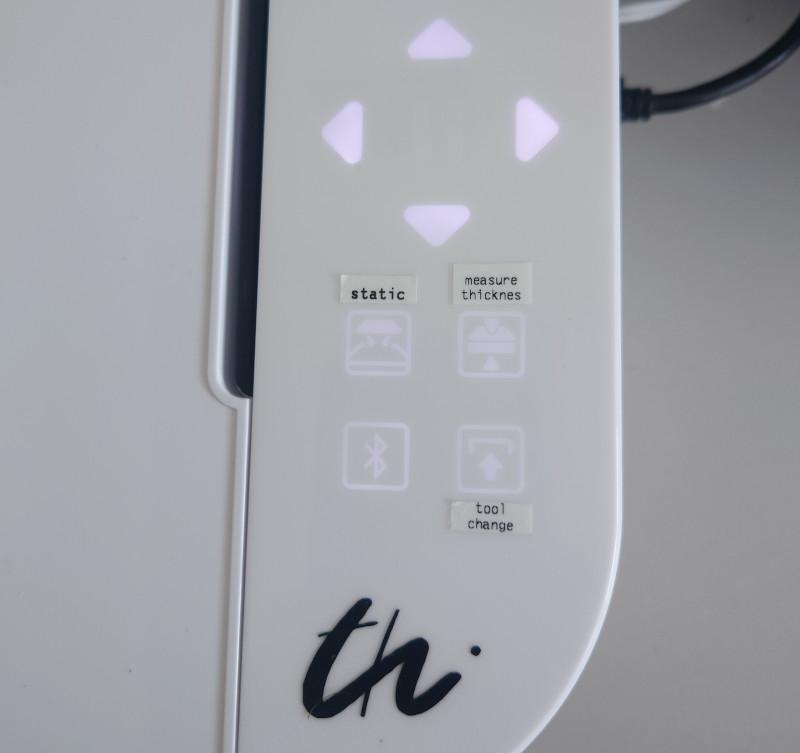

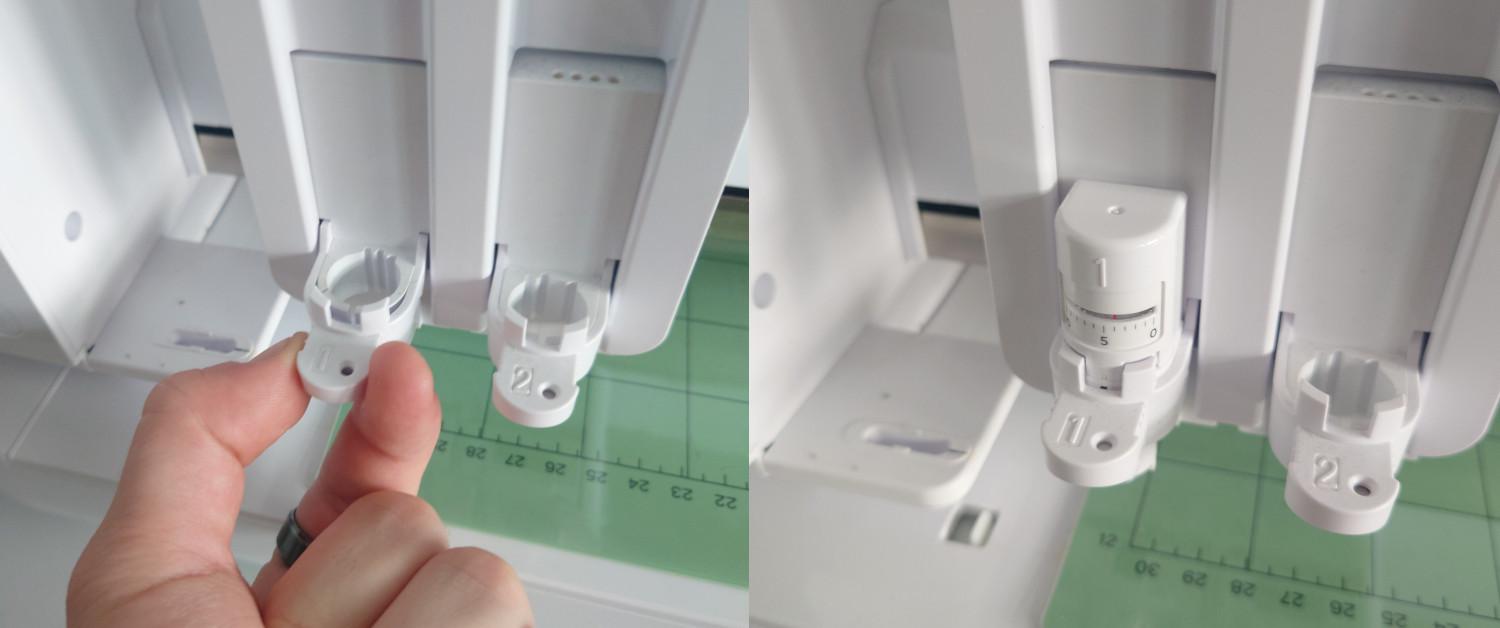

Then you can use the 'Tool Change' button to move the machine to the front or back (arrow keys) and insert the tool.


Then to change the tool, pull on the latch, place the tool and push on it.

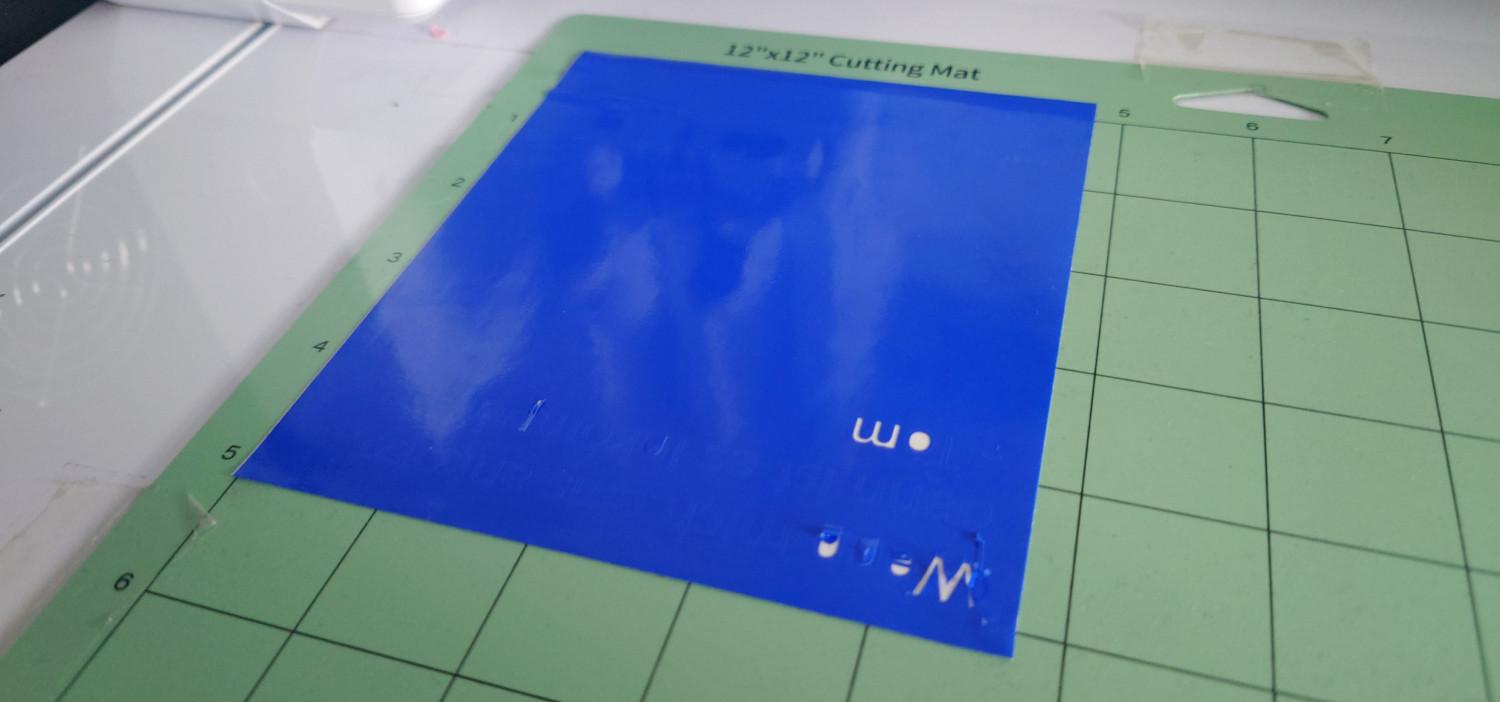

3. Place Material

Before placing the material:

  • remove the protective film placed on the cutting area (place it back when finished)
  • activate the electrostatic bed with the 'static' button, it takes a while to charge up the material


Then optionaly change the/place a cutting mat if your material is not flat enough/bends up. (Cutting mat is optional but especialy very bend materials hold better on it)

It should be flat and stuck on the bad, so not easy to move away.

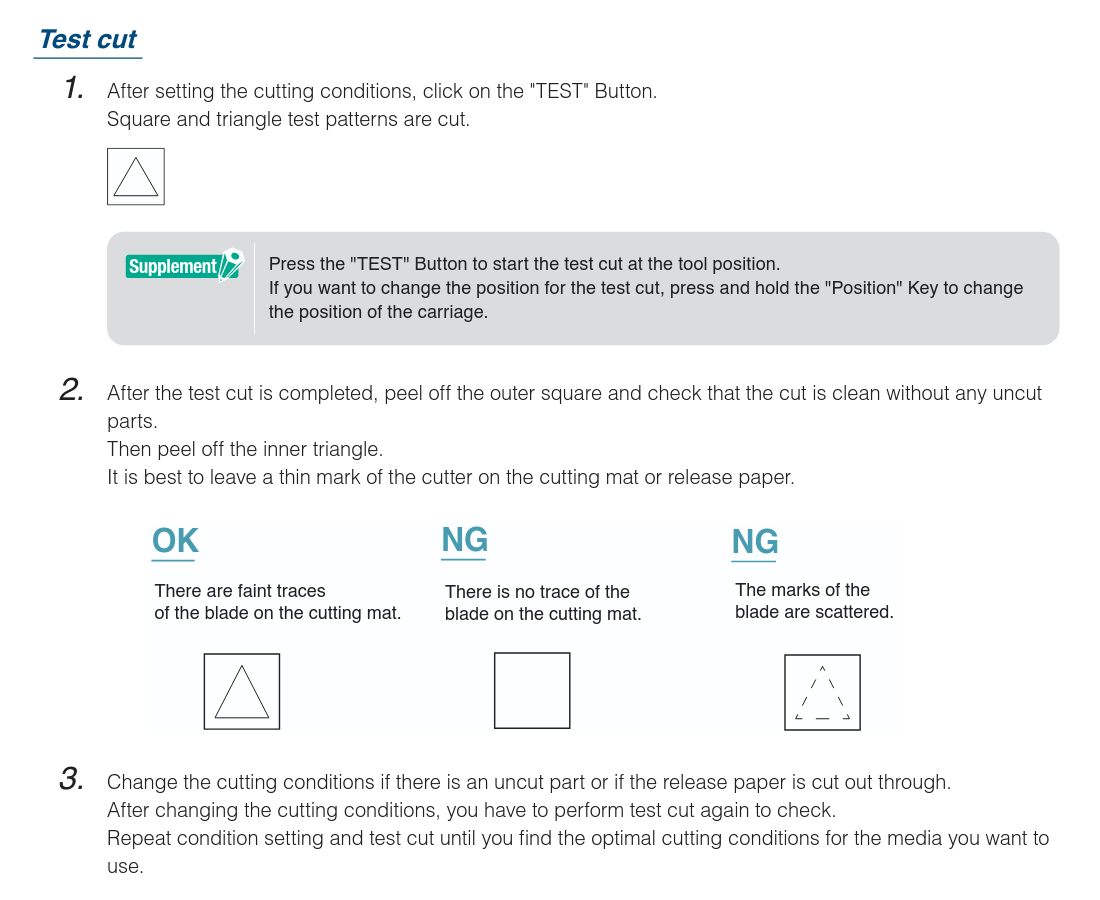

4. Make a test cut

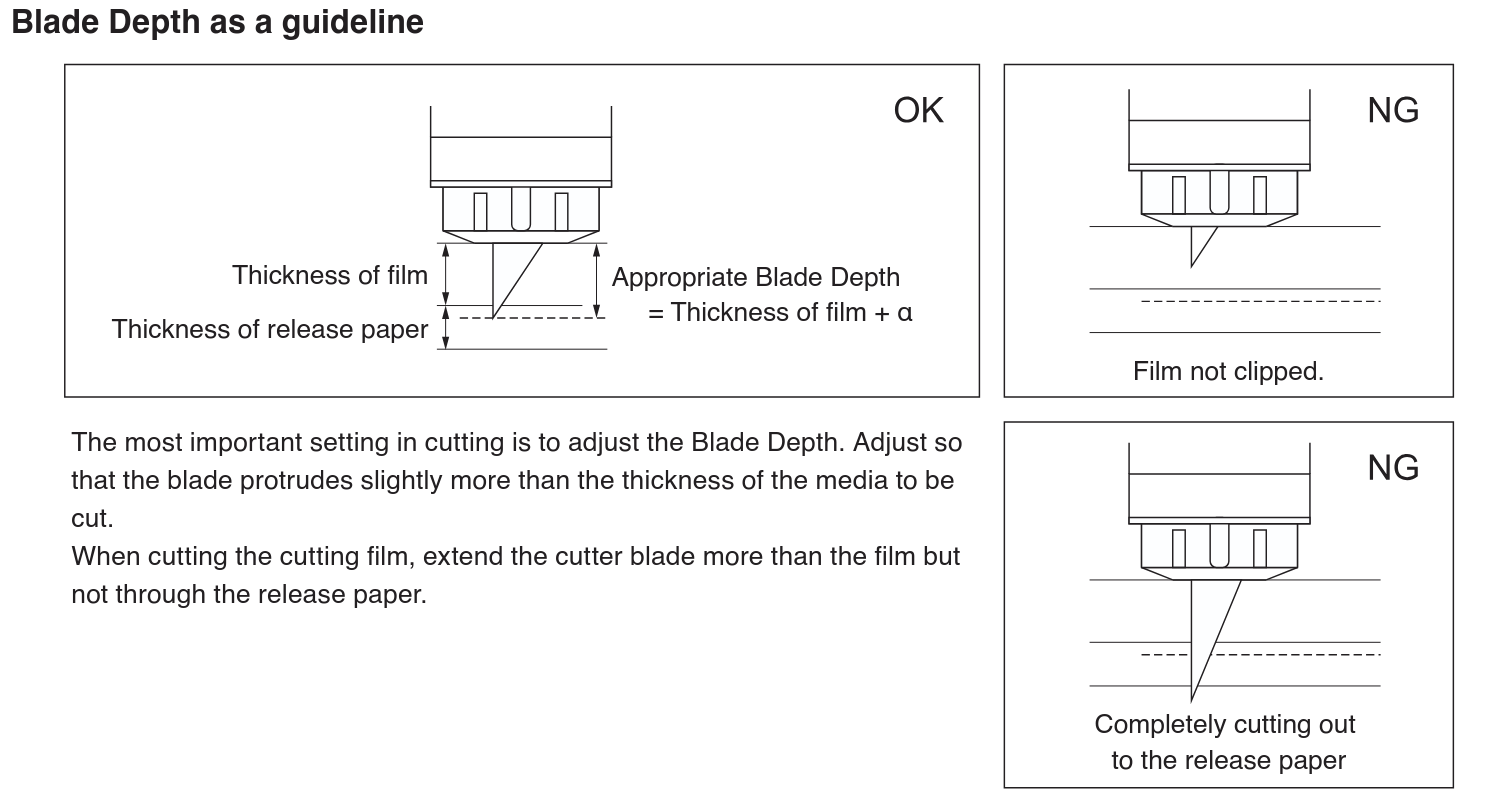

Blade Depth Guideline


Adjust the settings

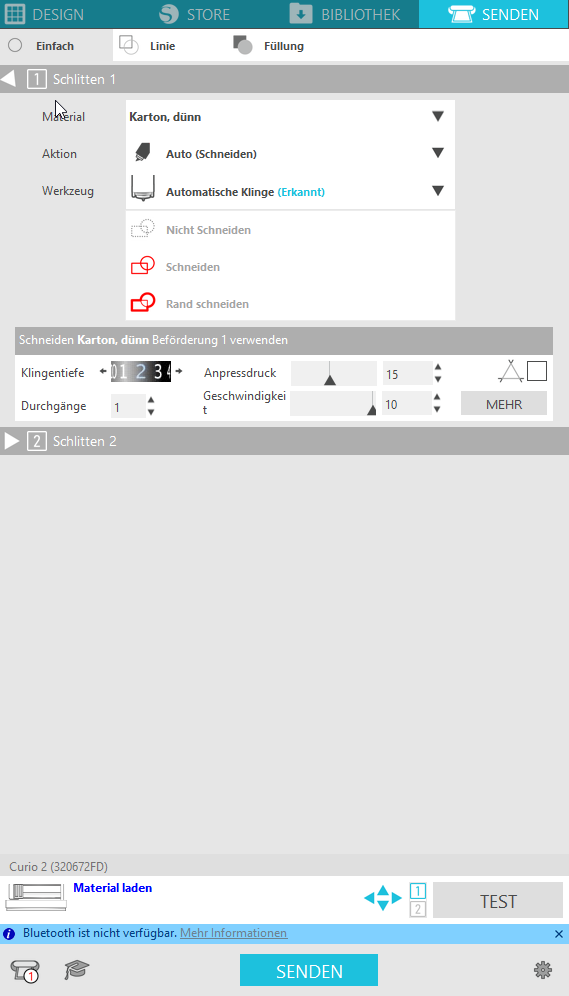

Open Silhouette_Studio_Logo_small.png Silhouette Studio and go to the top right tab 'SENDEN' (send).

There you can adjust the Settings for the tool.

The most important part it the seconds box from the top 'Schneiden' (cut).

Description Image
'Klingentiefe'
(cutting depth)
- is only used for the auto knife depth tool,
the other ones need to be adjusted manually,
but THE MOST IMPORTANT

'Anpressdruck'
(contact preasure)
- is the preasure/z offset used to go into the material
-higher for harder materials, lower for softer to not rip it'
- not that important

'Durchgänge'
(rounds)
- the number of repititions

'Geschwindigkeit'
(speed)
- i guess the percentage from max speed
- lower for more complex structures to cut

Make the cut

Drive to the position you want to test with the arrow keys on the machine.

MEASURE THE THICKNESS with the botton on the machine.


Set the tool/blade depth

  • When you use reflective media,apply masking tape and then detect the thickness at that position.
  • The sensor is attached to the bottom of the Tool Holder 2.

5. Import into software

TODO

  • DXF R12!!!

6. Start cutting

TODO
