local class

guerilla guide to CNC machining

https://lcamtuf.coredump.cx/gcnc/

https://thenounproject.com (not free anymore 😒)

How to a make Crystal Clear Ice Sphere

https://www.smooth-on.com/product-line/mold-max/?quicksearch

https://fabacademy.org/2021/labs/kamplintfort/students/mattissen-gerhard/assignments/week15/

https://fabacademy.org/2021/labs/kamplintfort/students/mattissen-gerhard/assignments/week18/

https://fabacademy.org/archives/2015/eu/students/postma.ronald/02_progress/week_09.html

https://fabacademy.org/2020/labs/leon/students/adrian-torres/week15.html

ferris File-A-Wax 148x88x37mm

https://youtu.be/wMRSPXt48CI?si=QapaiAiej4CBpQQa

3D Printed Injection Molds - The Crafsman Steady Craftin

Lifecasting:

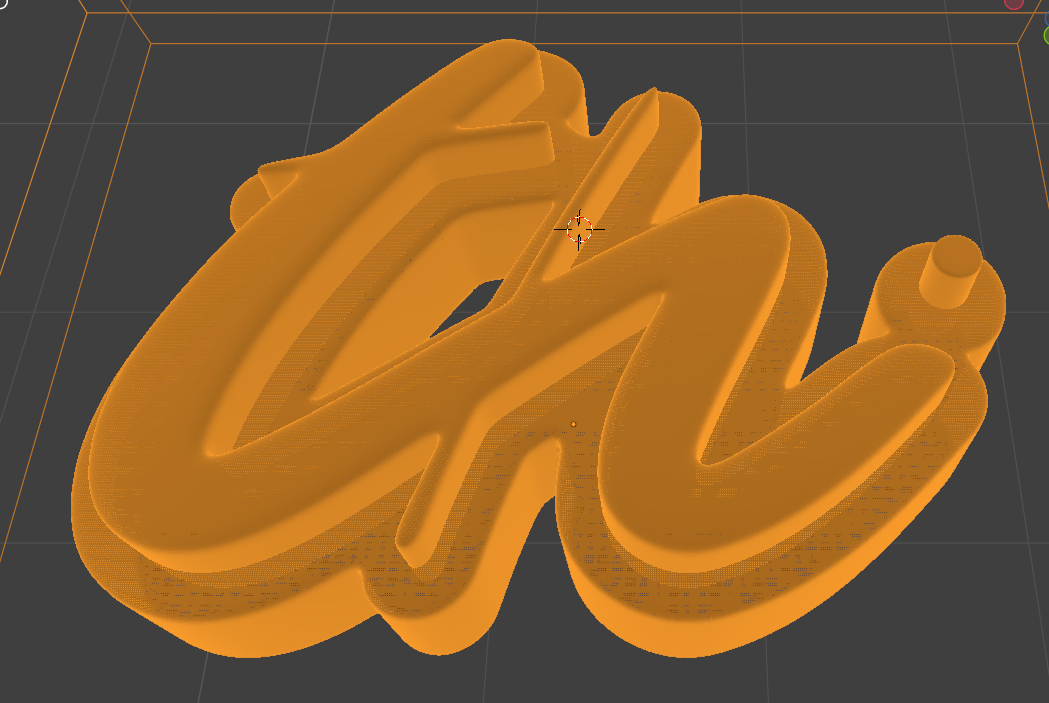

Blender - mods

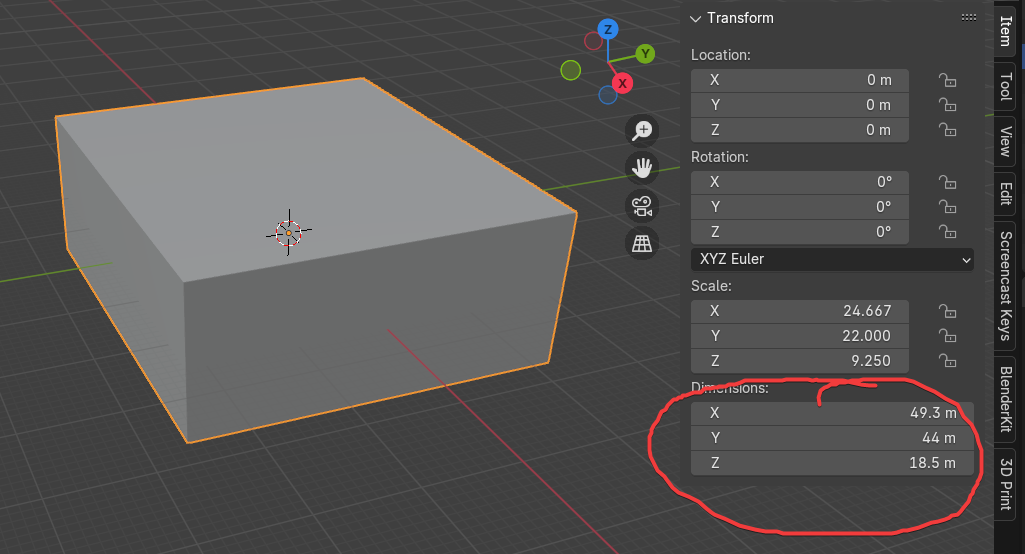

If you model your part in blender, you should start with a cube 49.3333 m x 44 m x 18.5 m in size.

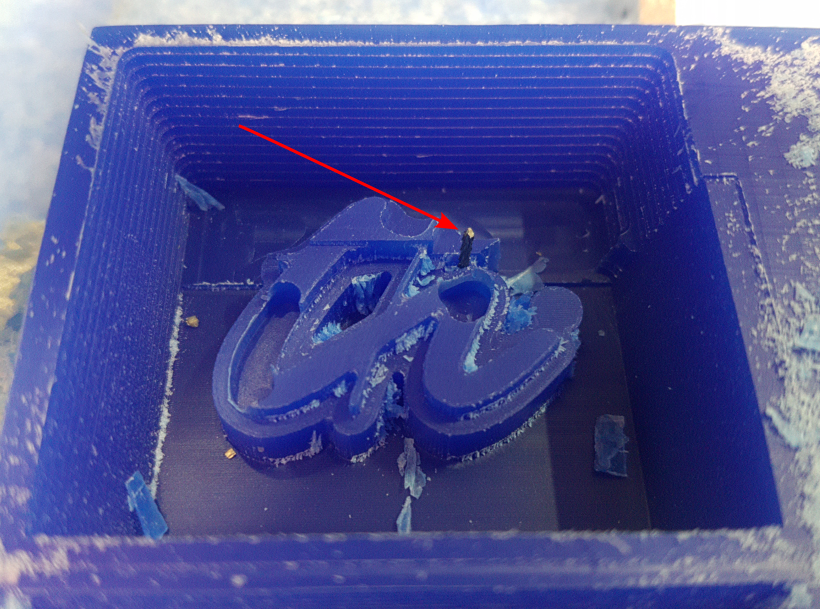

Hmm....I was just about to document the blender - mods - workflow when this happened: If the roughing doesn't enter in a hole and the finishing is 5 mm deeper, the tool breaks.

Let's use Fusion 😒

Fusion

Extrude a box 49,3333 m x 44 m x 18,5

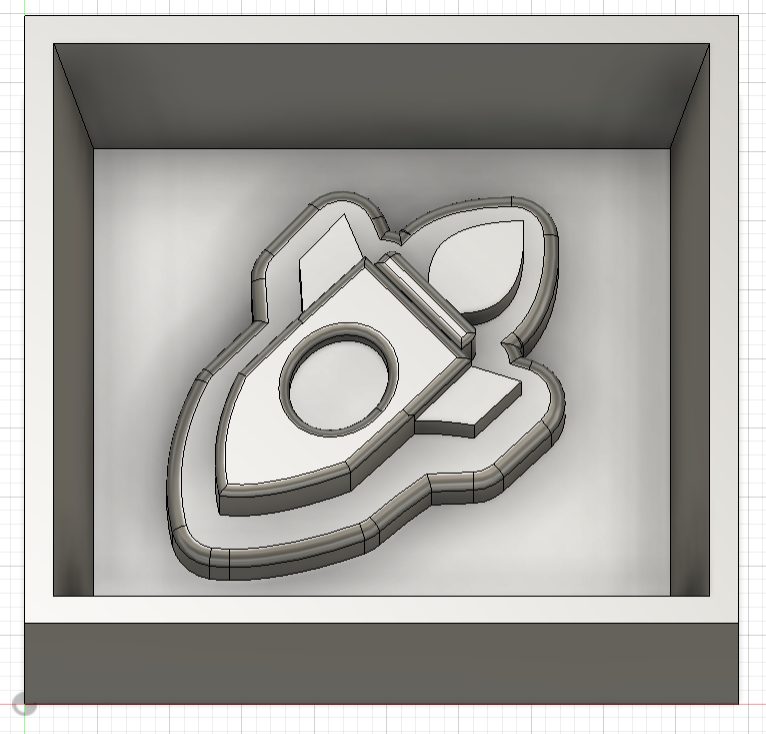

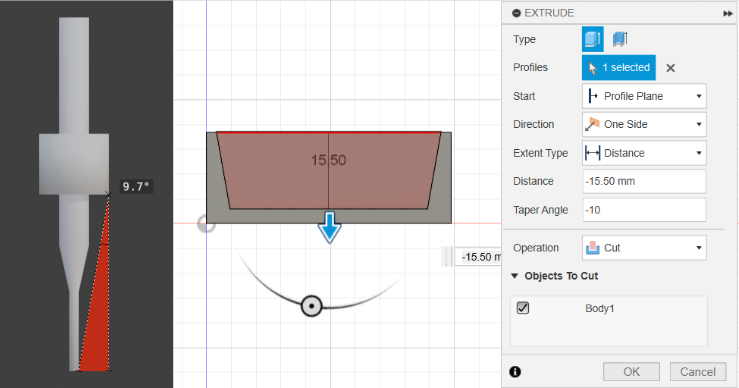

Create a cavity 2mm from the edge, 15,5 mm deep. If you give the sidewalls a 10° draft angle, you won't be able to hit it with the 1mm mill.

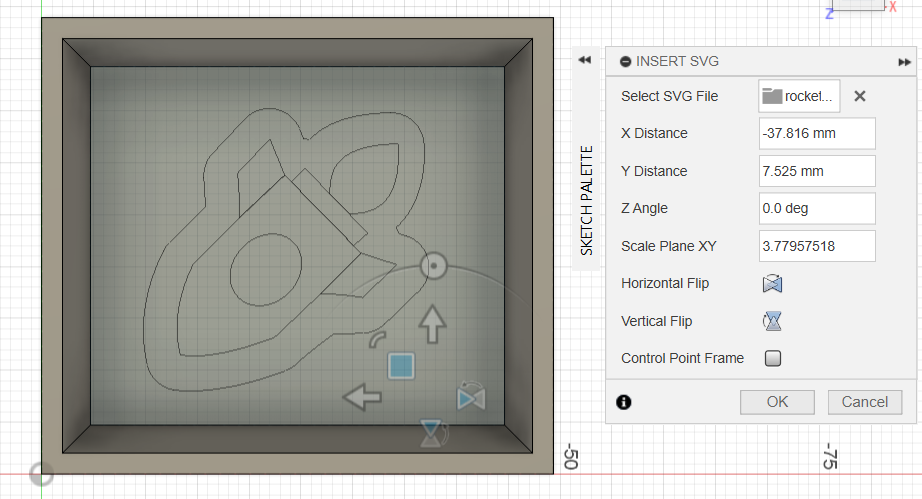

Place your svg (imported with the right scale factor of 3,77957518)

and extrude it.

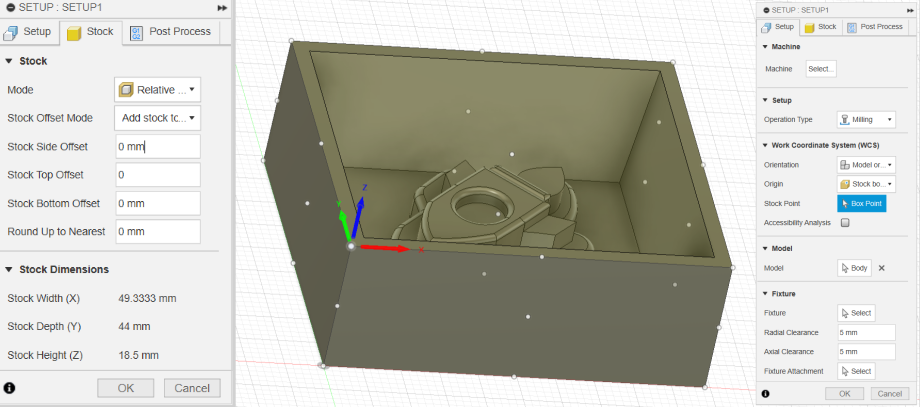

In the Manufacturing workbench we create a setup, with a stock of 0-offset and the origin bottom-left at the upper corner:

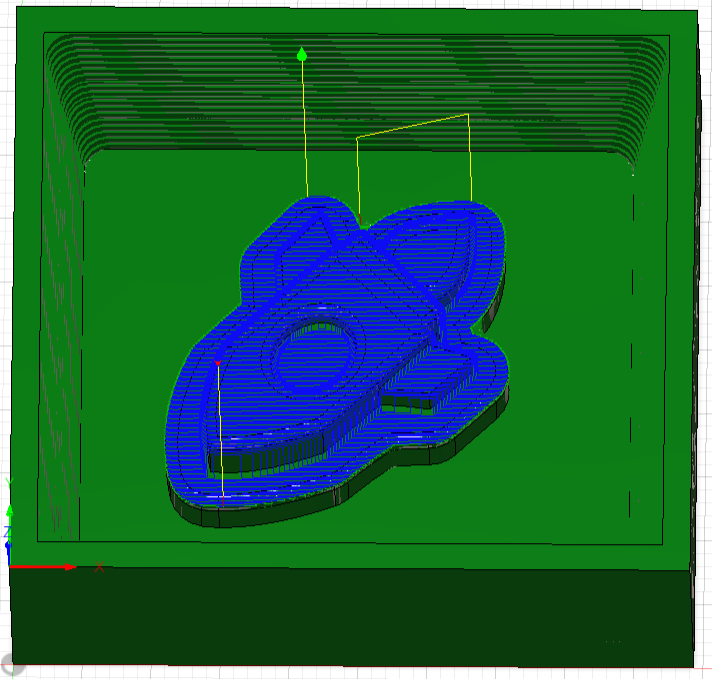

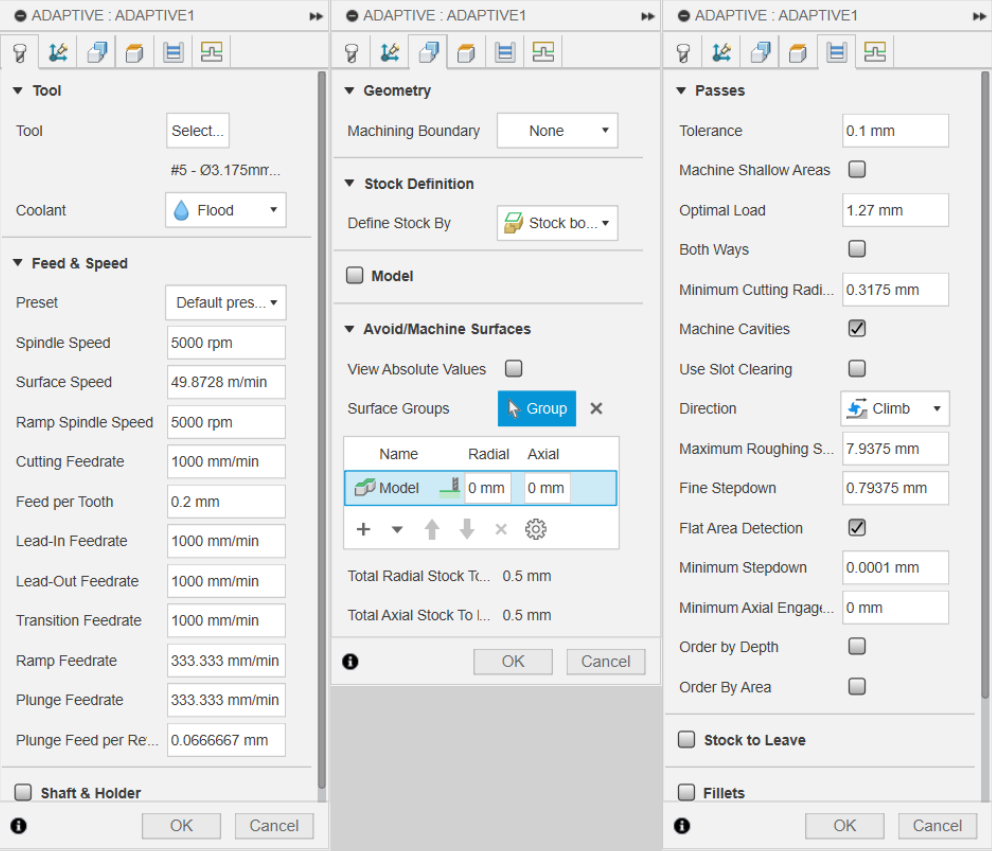

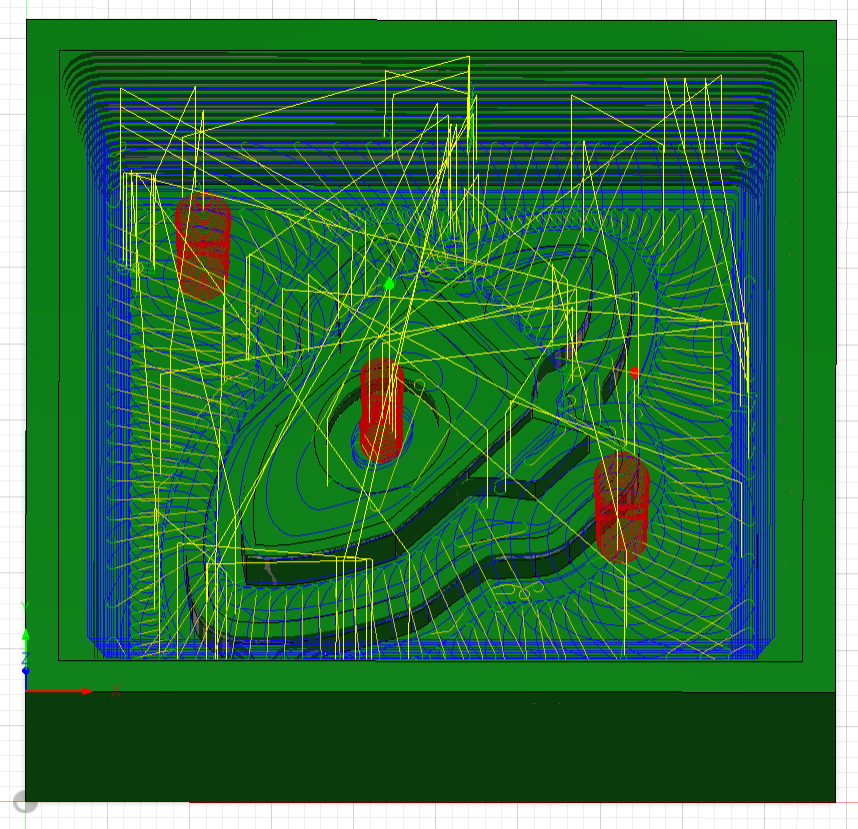

For the roughing I use "Adaptive Clearing" with the following settings:

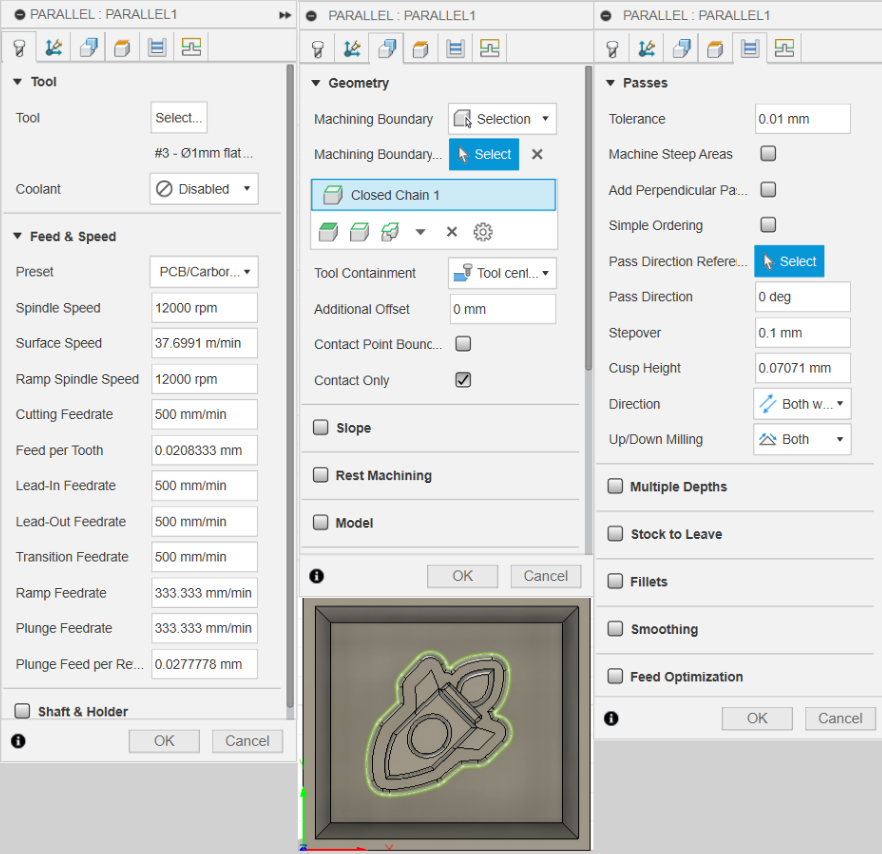

For the finishing I use Parallel:

Total time is 23:27
